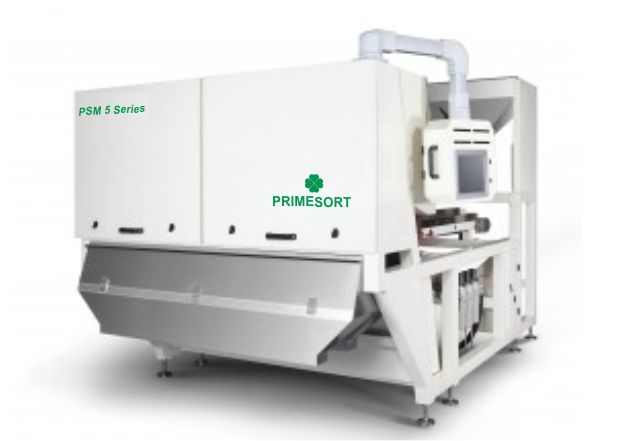

Mineral Color Sorter PSM Series / Click Here Download Mineral Color Sorter PDF Brochure
Core Technology：
- 1. The imported and high-end 6144 RGB high resolution camera (tricromatic).
- 2. The new high-frequency solenoid valve exclusive to color sorter ensures high sorting accuracy nearly to zero error.
- 3. The industry-leading intelligent spectrum response of image analyzing and processing technology.
- 4. The industry leading LED optical design system is added infrared source.
- 5. Double gas paths structure can work stably even with high impurity.
- 6. Scientific and efficient ventilation cooling system with dedusting and filterable function.
- 7. Automatic fault detection.
Model and Specification：
| Primesort Mineral Color Sorter PSM Series | |||||||||||||||||||||||||||||
| Model | Throughput（T/h） | Sorting Accuracy（%） | Rejection Rate | Power（kw) | Air Requirement (CFM) | Dimension L*W*H(mm) | Weight（kg） | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PSM2 | 0.5-1 | ≥99.99 | ≥15:1 | 1.2 | 45-55 | 1200x1462x1756 | 700 | ||||||||||||||||||||||
| PSM3 | 1.5-2 | ≥99.99 | ≥15:1 | 1.5 | 60-65 | 1560x1492x186 | 900 | ||||||||||||||||||||||
| PSM4 | 2-4 | ≥99.99 | ≥15:1 | 2.2 | 70-77 | 2100x1492x1860 | 950 | ||||||||||||||||||||||
| PSM5 | 3-5 | ≥99.99 | ≥15:1 | 3.2 | 80-88 | 2290x1560x1794 | 1150 | ||||||||||||||||||||||
| PSM7 | 4-6 | ≥99.99 | ≥15:1 | 4.5 | 125-141 | 2970x1560x1794 | 1500 | ||||||||||||||||||||||
Note:
The specific parameters will be different based on the raw material & impurities.
Specifications are subject to change without notice.
