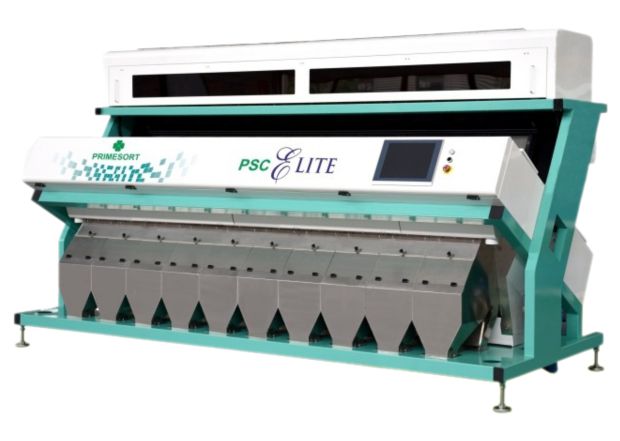

Rice Color Sorter PSC Series / Click Here Download Rice Color Sorter PDF Brochure
Specifications & Features
Highest ever Primesort capacity：
- A unique and proprietary designed RGBW cameras specifically for rice. Provides the ultimate in the detection of all knowm defects and forgien material.
- Double vision scanning system to detect the slightest difference up to 0.01 mm.
- Equipped with shape and size sorting methodology.
Multi-Chromatic 'Ultra' cameras：
- Available up to 12 chutes and most advanced feed system to deliver an even higher capacity per chute.
Technology：
- 7th Genetarion FPGA Processing with Auto Intelligent Digital Image Sorting Technology.
- Product scanning speed of 50000 lines/sec.
- Intelligent individual defect defection control over every defect, allowing users to and adjust the amount of each defect removed of with the slide of a bottom.
- Auto calibration feature with auto setting & auto sorting control.
Textured LED Lighting：
- Scientifically designed to improve illumination and enhance defect recognition in rice.
Grpahics Panel：
- 15" Linux based user friendly graphic user interface (GUI) with online support system.
- Image capturing systems with 200 profiles strorage that enables quick machine settings.
Magnetic Levitation Technology Ejector：
- Magle technology ejector with fst response time of 0.8 miliseconds, 3.8mm nozzle and lifetime of 12 billion cycles.
Chutes：
- Anodized chutes having smooth surface to facilitate the even flow of the material. Heating provision for chutes to avoid choking of material.
Model and Specification：
| Primesort Rice Color Sorter PSC Series | |||||||||||||||||||||||||||||
| Model | Throughput（T/h） | Sorting Accuracy（%） | Power（kw) | Voltage (V/Hz) | Dimension L*W*H(mm) | Weight（kg） | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PSC4 | 2.5-3.5 | ≥99.99 | 3 | 220/50 | 1872x1440x1940 | 800 | |||||||||||||||||||||||
| PSC5 | 3.5-4.5 | ≥99.99 | 3.5 | 220/50 | 2186x1440x1940 | 910 | |||||||||||||||||||||||
| PSC6 | 3.5-5.5 | ≥99.99 | 4 | 220/50 | 2500x1440x1940 | 1070 | |||||||||||||||||||||||
| PSC7 | 5.5-6.5 | ≥99.99 | 5 | 220/50 | 2814x1440x1940 | 1200 | |||||||||||||||||||||||
PSC7
PSC6
PSC5
PSC4
Note:
The specific parameters will be different based on the raw material & impurities.
Specifications are subject to change without notice.
Capacity is indicative and may vary w.r.t to grain quality and density.
